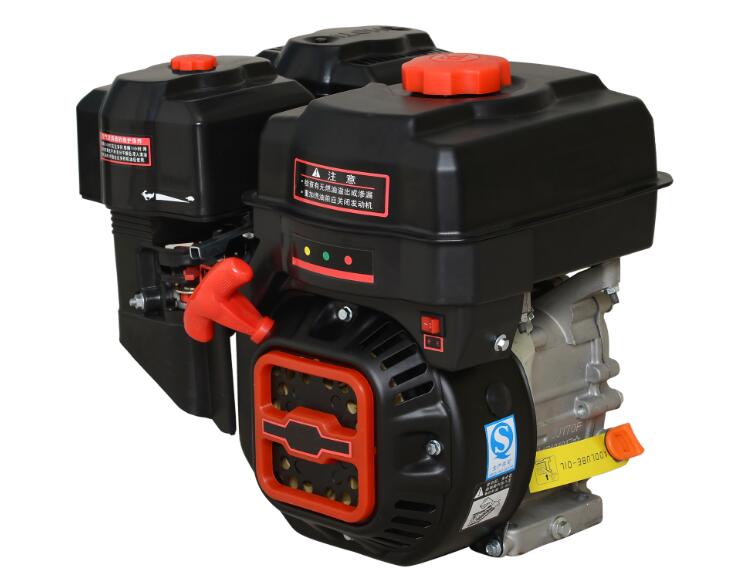

Chinese 177F Gasoline Engine GX270 with 9.0HP Manual Start


parameter Model ING177F
Horsepower 9.0HP
Type OHV,25°Tilt,single cylinder,
forced air cooling,4-stroke
max output (hp/rpm) 9/3600
max torque(N.m/rpm) 18.5/2500
bore×stroke(mm) 77×58
displacement 270ml
compression ratio 8.2:1
start system recoil start
Fuel tank capacity 6L
oil capacity 1.1L
lubricationg type splashing
fuel consumption ≤374g/kw.h
  Noise(Away from 7m)［db(A)］ 74
Net Weight(Kg) 27kg
Gross Weight(Kg) 28kg
